A non-carbonated caffeine water that comes in a narrow can seems pretty straightforward from the packaging side of things. In terms of manufacture, however, it is one of the more complex functional beverages out there. Because it’s not carbonated to pressurize the container and prevent oxidation, you have to go with liquid nitrogen injection for both functions. LN2 dosing in the beverage manufacturing context means you’re getting a rigid can with less than 50 ppb of dissolved oxygen, and a shelf life of 12 to 18 months. This is a detailed guide on all that goes into LN2 dosing beverage.
LN2 Dosing Is What Makes Non-Carbonated Slim Cans Viable
- Soft, dented, and undesirable are three words that could describe an unstiffened canned drink.
- Dosage of LN2 produces internal pressure without any carbonation in the product.
- This step removes the dissolved oxygen in the headspace during the sealing process.
- Both aspects are very essential when making non-carbonated caffeine water in slim cans.
- In the absence of LN2 dosage, shelf life is shortened and oxidation sets in.
- Dosing with LN2 is the most crucial decision in the manufacturing process.
The still and non-carbonated functional water segment is growing at over 11 percent CAGR globally through 2029, with slim can formats gaining traction in premium and on-the-go channels.
Why Non Carbonated Caffeine Water in Slim Cans Fails Without LN2 Dosing
- Soft water in leaves makes an easy and pressure-less can that looks bad on shelves.
- Headspace oxygen will cause oxidation of the caffeine and affect green tea/yerba mate flavors.
- Oxygen content exceeding 200 parts per billion results in color darkening and flavor degradation.
- The walls of the can will cave in while in transit due to lack of pressure from LN2.
- Consumer rejection rates of soft/dented cans may rise above 15%.
- The shelf life without LN2 injection in the beverage form is less than six months.
Why LN2 Dosing for Beverages Is Misunderstood by Most Founders
- Assumption is that structural integrity would be provided by the bottle itself.
- Slim bottles are made of thin aluminium than regular bottles and require pressure.
- N2 headspace flush is commonly mistaken for LN2 dosing beverage. The two differ.
- In LN2 dosing, liquid nitrogen is directly injected into the product before closure.
- During vaporisation of LN2 post-closure, 0.5-1.5 bar pressure is generated.
- Most Indian co packers don’t have an LN2 doser on their bottling line.
- The founders learn this after formulation and are ready for the pilot run.
What Founders Face When Specifying an LN2 Dosing Beverage Line
- Looking for a co-packer in India with LN2 doser for slim can production.
- Knowing how much LN2 to use for each slim can size.
- Verifying the dissolved oxygen amount after filling without our own quality control machines.
- Testing seam strength under N2 pressure inside during transit testing.
- Having consistent LN2 availability during the process of manufacturing.
- Checking the temperature of the fill liquid for caffeine water before the LN2 doser step.
- Obtaining proper COGS estimate without LN2 cost in the beginning stage.
How LN2 Dosing Works in a Non-Carbonated Beverage Slim Can Line
Step 1: Product Fill
- Water containing caffeine is added to the thin canister at 2–8°C.
- A cold-fill process is employed to avoid oxygen dissolution at the time of filling.
- The volume of filling is adjusted to create a certain amount of space between liquid surface and can lid ranging from 8-12 mm.
- Carefully adjusted filling rate to prevent any form of turbulence.
Step 2: LN2 Dose
- At -196 °C, liquid nitrogen is injected into the headspace after filling.
- Dosing varies in size from 0.5 ml to 1.6 ml according to can dimensions.
- LN2 only comes into contact with the product for an instant before starting its evaporation process.
- Timing should not exceed 1 second to avoid LN2 losses.
Step 3: Seam and Pressurise
- Seaming takes place within 0.5-1.0 seconds after LN2 dosing beverage point.
- Vaporisation of LN2 is complete within 30-60 seconds after seaming.
- Internal pressure reaches 0.5-1.5 bar depending on the quantity of dosing and temperature.
- Oxygen in the closed can goes below 50 ppb in a properly dosed line
| Factors are : | LN2 Dosing | N2 Headspace Flush |
| Mechanism | Liquid N2 dosed into can pre seal | N2 gas purge of headspace |
| Can Pressurisation | Yes (0.5 to 1.5 bar internal) | Minimal |
| Oxygen Removal | Highly effective (DO below 50 ppb) | Moderate (DO 100 to 300 ppb) |
| Can Rigidity | High (pressurised & firm feel) | Low (soft can &dents easily) |
| Shelf Life Impact | Significantly extended | Moderate improvement |
| Equipment Required | LN2 doser on filling line | Standard N2 gas line |
| Cost Premium | Moderate (LN2 supply + doser) | Low |
| Best For | Non carbonated premium slim cans | Budget ambient beverages |

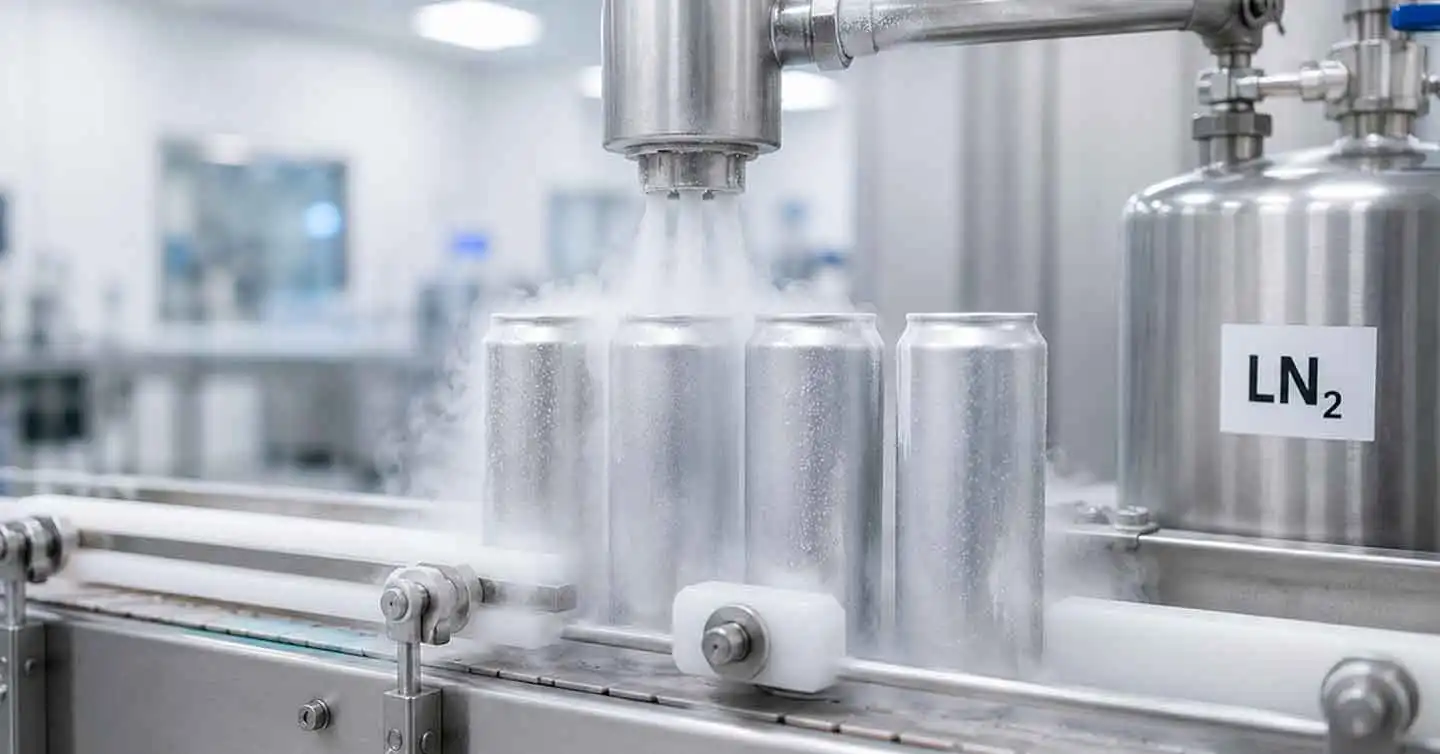

What Actually Works in LN2 Dosing Beverage Manufacturing
Confirm Co-Packer Capability Before Finalising Format
- Specifically request an LN2 doser on the slim can line and not just an N2 option.
- Request information on dissolved oxygen tests performed during their previous LN2 fill test.
- Ensure that they have an LN2 delivery agreement in place.
Validate Dose Volume in Trial Before Pilot Batch
- Perform a small test fill using three different dose amounts: low, medium, and high.
- Record the pressure internally in each case using the TPO or ManTIS.
- Dose selected must deliver a consistent pressure range of 0.7 to 1.0 bar.
Control Fill Temperature Tightly
- Temperatures above 10 degrees C adversely affect the efficacy of LN2 greatly.
- The content needs to be cooled to 2-6 degrees C at the fill point for maximum DO elimination.
- Hot content leads to flash-off of LN2 before seaming.
Dissolved oxygen above 100 ppb accelerates oxidative degradation of polyphenols and caffeine in functional beverages, making LN2 dosing beverage below 50 ppb DO the minimum standard for a premium caffeine water in slim cans.
| Can Size | LN2 Dose (ml) | Target Pressure (bar) | DO Target (ppb) |
| 150 ml slim can | 0.5 to 0.8 ml | 0.5-0.8 | Below 50 |
| 200 ml slim can | 0.7 to 1.0 ml | 0.6-0.9 | Below 50 |
| 250 ml slim can | 0.9 to 1.3 ml | 0.7-1.0 | Below 50 |
| 330 ml slim can | 1.2 to 1.6 ml | 0.8-1.2 | Below 50 |
How Foodsure Supports Your LN2 Dosing Beverage Manufacturing
- Identified and qualified co-packers capable of LN2 doser for slim cans line.
- We have developed the LN2 dosing beverage dossier that includes dose amount,
- fill temperature, and seam specification. We conduct dissolved oxygen validation
- testing in the co-packer’s facility. COGS analysis includes LN2 delivery price,
- doser depreciation, and wastage factor. Trial fill validation and pressure
- validation performed prior to pilot batch commitment. Complete manufacturing
- dossier with specifications regarding fill, dose, seam, and quality control is prepared.
- For Foodsure, we have identified LN2 dosing beverage lines for functional water,
- caffeine water, and coconut water available in slim cans throughout India.
What Successful Founders Do Differently With LN2 Dosing Beverage Manufacturing
- They verify co-packer LN2 capabilities before deciding on slim can design.
- They demand DO testing results from co-packer’s most recent LN2 run rather than promises.
- They do a fill test using three different doses before deciding on pilot lot.
- They calculate LN2 costs in COGS right from the start and not as an afterthought after the quote.
- They check for seam integrity under pressure before doing transit testing.
- They consider LN2 dosing beverage manufacturing a 6-8 week process qualification.
- They insist on receiving a written fill specification of the dose, temperature, seam integrity, and DO results.
Ready to talk about production for your non-carbonated caffeine water with LN2 dosing in slim cans?
Contact us at +91 8130404757 or [email protected]
FAQs on LN2 Dosing for Non-Carbonated Caffeine Water in Slim Cans
- What is LN2 dosing in beverage manufacturing and why is it used?
- Dosage of LN2 involves injecting liquid nitrogen into the can just before the seaming process.
- This results in pressurizing the can without carbonating it to keep it firm.
- In addition, it eliminates dissolved oxygen in the can.
- How much LN2 should be dosed into a 250 ml slim can?
- Dose recommended: 0.9-1.3 ml of liquid nitrogen per 250 ml can.
- Pressure in the can would be 0.7-1.0 bar after full vaporization.
- Dosage to be verified during a fill trial run at co-packers’ plant.
- Is LN2 dosing available at co-packers in India for slim can lines?
- Available but not widespread. Most major beverage co-packers in India have them.
- Slim can LN2 filling lines are more prevalent among functional beverage co-packers.
- Never sign any contract without checking for doser availability and past runs.
- What dissolved oxygen level should I target in a non-carbonated caffeine water slim can?
- Target less than 50 ppb of dissolved oxygen post fill for premium caffeine water.
- Greater than 100 ppb leads to oxidative breakdown of caffeine and polyphenols.
- Request TPO or DO information from your co-packer following trial fill.
- Does LN2 dosing add significantly to the COGS of a slim can beverage?
- The cost of LN2 would increase by an amount of Rs. 0.15 to Rs. 0.40 per can based on present day costs.
- Depreciation and maintenance of doser will cost additionally Rs. 0.10 to Rs. 0.20 per can.
- Total cost for LN2 dosing beverage premium will be Rs. 0.25 to Rs. 0.60 per can.
- How does Foodsure help with LN2 dosing beverage manufacturing for new brands?
- We screen the co packers, determine dose volume, and perform the trial fill validation.
- Our scope encompasses the fill temperature, seam specification, DO objective, and pressure range.
- You get our complete manufacturing document before incurring any cost on pilot batches.
